Colors.Dev

A lightweight, cross-platform C/C++ library with .NET interop for color manipulation and includes console color rendering with 24-bit true color support.

---

Features

• Color Space Conversions: Convert between RGB, HSV, HSL, CMYK, XYZ, Lab, Lch, and Luv color spaces.
• Console Color Support: Set 24-bit true colors for foreground and background in console applications
• ANSI Escape Sequences: Automatic ANSI color code generation for terminal rendering
• Cross-Language Support: Native C/C++ library with .NET interop examples
• High Precision: Raw value storage for lossless round-trip conversions
• Hex & Decimal Export: Convert RGB colors to hex strings and decimal integers

---

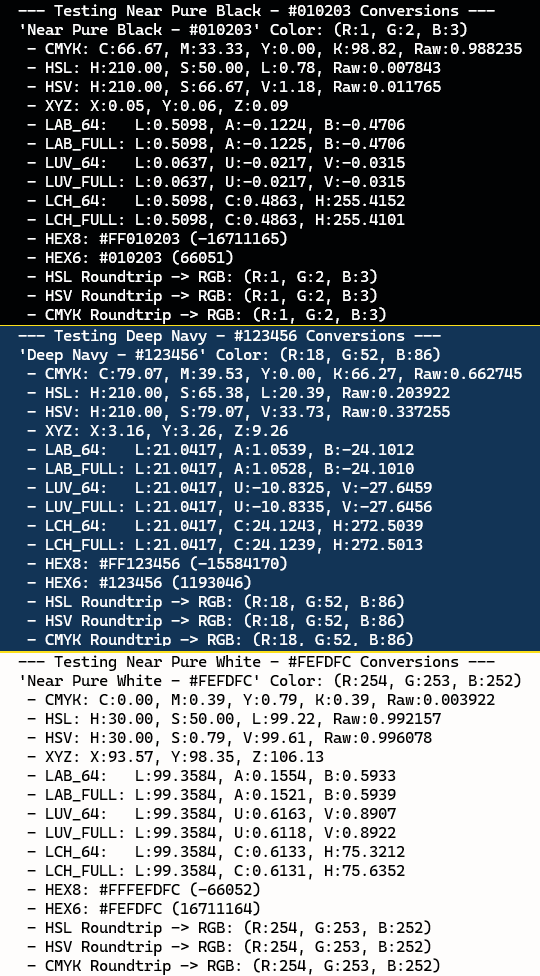

Example Output

---

Table of Contents

• Installation
• Quick Start
• API Reference
  • Color Conversions
  • Console Colors
  • Format Conversions
• Usage Examples
  • C/C++ Example
  • C# .NET Example
• Building
• Project Structure
• Contributing
• License

---

Installation

Prerequisites

• Windows: Visual Studio 2022 (Platform Toolset v143)
• C++ Standard: C++14 or higher
• .NET SDK: .NET 8.0 (for C# demos)

Building the Library

1. Clone the repository:
2. Open Colors.Dev.sln in Visual Studio 2022
3. Build the solution (F7)
4. The DLL will be output to the bin directory

Build Output

• Library: Colors.Dev.dll and Colors.Dev.lib
• C Demo: C_Console.exe
• C# Demo: CSharp_Console.exe

---

Quick Start

C/C++ Usage

#include "ansi_printing.h"
#include "color_support.h"
#include "rgb_color.h"
#include "hsl_space.h"
#include "hsv_space.h"
#include "xyz_space.h"
#include "cmyk_space.h"
#include "lch_space.h"
#include "luv_space.h"

int main() {
  // Create an RGB color
  RgbColor cyan = { 255, 0, 255, 255 }; // alpha, red, green, blue
  // Convert to HSV
  HsvSpace hsv = RgbToHsv(cyan);
  printf("HSV: H:%.2f, S:%.2f, V:%.2f\n", hsv.hue, hsv.saturation, hsv.value);
  // Convert to XYZ
  XyzSpace xyz = RgbToXyz(cyan);
  printf("XYZ: X%.2f, Y:%.2f, Z:%.2f\n", xyz.x, xyz.y, xyz.z);

  // LabSpace labFull = XyzToLab(xyz); -- default full (d64_Full_Type) precision
  // Convert XYZ to Lab (full and 64-bit)
  LabSpace labFull = XyzToLabEx(xyz, d64_Full_Type);
  printf("LAB FULL D64: L:%.4f, A:%.4f, B:%.4f", labFull.l, labFull.a, labFull.b);
  // Convert XYZ to Lab (64-bit)
  LabSpace lab64 = XyzToLabEx(xyz, d64_Type);
  printf("LAB D64: L:%.4f, A:%.4f, B:%.4f", lab64.l, lab64.a, lab64.b);

  // Set console foreground color
  SetFgColorEx(cyan);
  printf("This text is cyan!\n");
  // Reset to default console colors
  ResetColor();
  // Clear the console buffer
  ClearBuffer();
  return 0;
}

C# .NET Usage

using static ColorApi;
...
var cyan = new RgbColor { alpha = 255, red = 0, green = 255, blue = 255 };

// Convert to HSL
var hsl = RgbToHsl(cyan);
Console.WriteLine($"HSL: H:{hsl.hue:0.00}, S:{hsl.saturation:0.00}, L:{hsl.lightness:0.00}");
// Convert to XYZ
var xyz = RgbToXyz(cyan);
Console.WriteLine($"XYZ: X:{xyz.x:0.00}, Y:{xyz.y:0.00}, Z:{xyz.z:0.00}");

// var labFull = XyzToLab(xyz); -- default full (d64_Full_Type) precision
// Convert XYZ to Lab (full and 64-bit)
var labFull = XyzToLabEx(xyz, WhitePointType.WPID_D65_FULL);
Console.WriteLine($"LAB D64 Full: L:{labFull.l:0.0000}, A:{labFull.a:0.0000}, B:{labFull.b:0.0000}");
// Convert XYZ to Lab (64-bit)
var lab64 = XyzToLabEx(xyz, WhitePointType.WPID_D65);
Console.WriteLine($"LAB D64: L:{lab64.l:0.0000}, A:{lab64.a:0.0000}, B:{lab64.b:0.0000}");

// Set console colors
SetColorsEx(cyan, new RgbColor { alpha = 255, red = 0, green = 0, blue = 0 });
Console.WriteLine("Cyan text on black background!");
// Reset to default console colors
ResetColor();
// Clear the console buffer
ClearBuffer();

---

API Reference

Color Conversions

• HsvSpace RgbToHsv(RgbColor rgb)

  • Converts RGB (0-255) to HSV color space.
  • Returns: HsvSpace with hue (0-360°), saturation (0-100%), value (0-100%), and raw_value for improved round-trip accuracy.

• HslSpace RgbToHsl(RgbColor rgb)

  • Converts RGB to HSL (Hue, Saturation, Lightness) color space.
  • Returns: HslSpace with hue (0-360�), saturation (0-100%), lightness (0-100%), and raw_lightness for improved round-trip accuracy.

• XyzSpace RgbToXyz(RgbColor rgb)

  • Converts RGB to XYZ color space.
  • Returns: XyzSpace with X, Y, Z components.

• CmykSpace RgbToCmyk(RgbColor clr)

  • Converts RGB to CMYK color space. CmykSpace maintains cyan, magenta, yellow, and black components (0-100%) and raw black value for improved round-trip accuracy.
  • Returns: CmykSpace with cyan, magenta, yellow, and black components.

• LabSpace XyzToLab(XyzSpace xyz)

  • Converts XYZ to Lab color space using default full precision (d64_Full_Type).
  • Returns: LabSpace with L, a, b components.

• LabSpace XyzToLabEx(XyzSpace xyz, WhitePointType whitePoint)

  • Converts XYZ to Lab color space with specified white point type for precision control.
  • Returns: LabSpace with L, a, b components.

• LabSpace RgbToLab(RgbColor rgb)

  • Converts RGB to Lab color space. (Default: WP_D65_FULL white point is used for the Xyz to Lab conversion.)
  • Returns: LabSpace with L, a, b components.

• LuvSpace XyzToLuv(XyzSpace rgb)

  • Converts a color from XYZ color space to Luv color space. (Default: WP_D65_FULL white point is used for the conversion.)
  • Returns: LuvSpace with L, u, v components.

• LuvSpace XyzToLuvEx(XyzSpace xyz, WhitePointType wp)

  • Converts a color from XYZ color space to Luv color space using a specified white point.
  • Returns: LuvSpace with L, u, v components.

• LuvSpace RgbToLuv(RgbColor rgb)

  • Converts RGB to Luv color space. (Default: WP_D65_FULL white point is used for the conversion.)
  • Returns: LuvSpace with L, u, v components.

• LchSpace RgbToLch(RgbColor rgb)

  • Converts RGB to LCH color space. (Default: WP_D65_FULL white point is used for the conversion.)
  • Returns: LchSpace with L, C, H components.

• RgbColor HsvToRgb(HsvSpace hsv)

  • Converts HSV to RGB. Uses raw_value if available for precision.
  • Note: Only ~3.6M HSV combinations exist for 16.7M RGB colors
  • Returns: RgbColor with alpha set to 255.

• RgbColor HslToRgb(HslSpace hsl)

  • Converts HSL to RGB. Uses raw_lightness if available for precision.
  • Returns: RgbColor with alpha set to 255.

• RgbColor CmykToRgb(CmykSpace cmyk)

  • Converts CMYK to RGB color space.
  • Returns: RgbColor with alpha set to 255.

Console Colors

• void SetColorsEx(RgbColor bg, RgbColor fg)

  • Sets both background and foreground console colors using 24-bit RGB.

• void SetFgColorEx(RgbColor fg)

  • Sets foreground (text) color only.

• void SetBgColorEx(RgbColor bg)

  • Sets background color only.

• void SetFgColor(unsigned char red, unsigned char green, unsigned char blue)

  • Sets foreground color using individual RGB components.

• void SetBgColor(unsigned char red, unsigned char green, unsigned char blue)

  • Sets background color using individual RGB components.

• void ResetColor(void)

  • Resets foreground and background to console defaults.

• void ClearBuffer(void)

  • Clears the console buffer and resets cursor position.

Format Conversions

• char* RgbToRgbHex(RgbColor clr, unsigned int includeAlpha)

  • Converts RGB to hex string format.
  • includeAlpha = 0: Returns #RRGGBB
  • includeAlpha = 1: Returns #AARRGGBB
  • Note: Caller must free returned string with FreeAllocPtr()

• void FreeAllocPtr(void* p)

  • Only required after calls to RgbToRgbHex().
  • Frees memory allocated by the library for returned pointers (e.g. hex strings).

• int RgbToRgbDec(RgbColor clr)

  • Converts RGB to decimal integer (0x00RRGGBB).

• int RgbToArgbDec(RgbColor clr)

  • Converts RGB to decimal integer with alpha (0xAARRGGBB).

---

Usage Examples

C/C++ Example

See the full C console demo in CConsole/main.c:

#include "color_types.h"
const RgbColor rgbCyan = { 255, 0, 255, 255 };
const RgbColor rgbBlack = { 255, 0, 0, 0 };

// Convert and display color info
HsvSpace hsv = RgbToHsv(rgbCyan);
HslSpace hsl = RgbToHsl(rgbCyan);
char* hex = RgbToRgbHex(rgbCyan, 0); printf("Hex: %s\n", hex);

// Round-trip test
RgbColor hsv_rt = HsvToRgb(hsv);
printf("HSV Roundtrip: R:%u, G:%u, B:%u\n", hsv_rt.red, hsv_rt.green, hsv_rt.blue);

// Set console colors
SetColorsEx(rgbCyan, rgbBlack);
printf("Colored text!\n");

// Reset to default console colors
ResetColor();
// Clear the console buffer
ClearBuffer();

C# .NET Example

See the full .NET demo in CSharpConsole/Program.cs:

static readonly RgbColor rgbCyan = new RgbColor { alpha = 255, red = 0, green = 255, blue = 255 };
static readonly RgbColor rgbBlack = new RgbColor { alpha = 255, red = 0, green = 0, blue = 0 };
var hsv = ColorApi.RgbToHsv(rgbCyan);
var hsl = ColorApi.RgbToHsl(rgbCyan);
var hex = ColorApi.RgbToRgbHex(rgbCyan, false);
Console.WriteLine($"Hex: {hex}");
var dec = ColorApi.RgbToArgbDec(rgbCyan);
Console.WriteLine($"Decimal: {dec}");

// Round-trip conversions
var hsv_rev = ColorApi.HsvToRgb(hsv);
var hsl_rev = ColorApi.HslToRgb(hsl);

// Set console colors
ColorApi.SetColorsEx(rgbCyan, rgbBlack);
Console.WriteLine("Colored text!");

// Reset to default console colors
ColorApi.ResetColor();
// Clear the console buffer
ColorApi.ClearBuffer();

---

Building

Visual Studio 2022

1. Open Colors.Dev.sln
2. Select desired configuration (Debug/Release)
3. Build Solution (Ctrl+Shift+B)

---

Color Space Information

RGB (Red, Green, Blue)

• Range: 0-255 per channel
• Total Colors: 16,777,216 (2^24)
• Use Case: Display, web, image formats

HSV (Hue, Saturation, Value)

• Hue: 0-360� (color wheel)
• Saturation: 0-100% (color intensity)
• Value: 0-100% (brightness)
• Total Combinations: ~3,600,000
• Use Case: Color picking, adjusting brightness

HSL (Hue, Saturation, Lightness)

• Hue: 0-360� (color wheel)
• Saturation: 0-100% (color purity)
• Lightness: 0-100% (light/dark balance)
• Total Combinations: ~3,600,000
• Use Case: Color adjustments, tinting

Note: HSV/HSL have fewer combinations than RGB, so conversions may not be perfectly reversible. This library stores raw_value/raw_lightness to improve round-trip accuracy.

---

Contributing

Contributions are welcome! Please feel free to submit a Pull Request.

1. Fork the repository
2. Create your feature branch (git checkout -b feature/AmazingFeature)
3. Commit your changes (git commit -m 'Add some AmazingFeature')
4. Push to the branch (git push origin feature/AmazingFeature)
5. Open a Pull Request

---

License

This project is licensed under the MIT License - see the LICENSE file for details.

---

Acknowledgments

• ANSI escape sequence support for cross-platform terminal colors
• Inspired by the need for true-color console applications
• Built with C++14 for broad compatibility

---

Version History

• 6.3.7.0201 - Current release

  • Moved from Chizl.Colors to Colors.Dev to create a more focused library for color manipulation and console color support. This allows for a more streamlined API and clearer branding for developers looking for a dedicated color library without the additional features of the broader Colors.Dev framework.

• 6.3.4.1749

  • Missed the RgbToLab conversion in the previous update, so added that in this version to ensure full RGB to Lab support. This allows developers to easily convert RGB colors to Lab for tasks like color grading, palette generation, and advanced color manipulation while maintaining the existing RGB, HSV, HSL, CMYK, XYZ, LCH, and LUV conversions.

• 6.3.4.0543

  • Added RGB to LCH and RGB to LUV conversions to support quick access to LCH and LUV color spaces for applications that require perceptual color adjustments. This allows developers to easily convert RGB colors to LCH and LUV for tasks like color grading, palette generation, and advanced color manipulation while maintaining the existing RGB, HSV, HSL, CMYK, XYZ, and Lab conversions.

• 6.3.1.0251

  • Fine tunning LabToLch using LCH CHROMA EPS of 0.003 to prevent chroma from being rounded to 0 and thus LCH hue becoming undefined. This allows for more accurate LCH conversions, especially for near-neutral colors. Also using PI 3.14159265358979323846 for improved precision in hue calculations.

• 6.3.1.0154

  • Library now supports RGB, HSV, HSL, CMYK, XYZ, Lab, Lch, and Luv color space conversions. Console color manipulation functions have been expanded to allow setting foreground and background colors separately or together using RGB values. Hex and decimal format conversions for RGB colors are also supported.

• 6.2.27.1704

  • Updated version to existing Chizl standard using UTC timestamp. Added RGB to CMYK and CMYK to RGB conversions.

• 1.3.1

  • Separated RGB, HSL, HSV, XYZ, and Lab color space structures into separate files for better organization and clarity in the API, before adding in CYMK, LUV, etc.

• 1.2.1

  • Added LabSpace color space conversions (XYZ to Lab) with use of D64 or D64_Full white point types for precision control.

• 1.2.0

  • Added XyzSpace color space conversions (RGB to XYZ)

• 1.1.0

  • Color space conversions (RGB, HSV, HSL)
  • Console color manipulation
  • Hex and decimal format conversions
  • C and C# demo applications

---
